DGS3S-020 AH7025

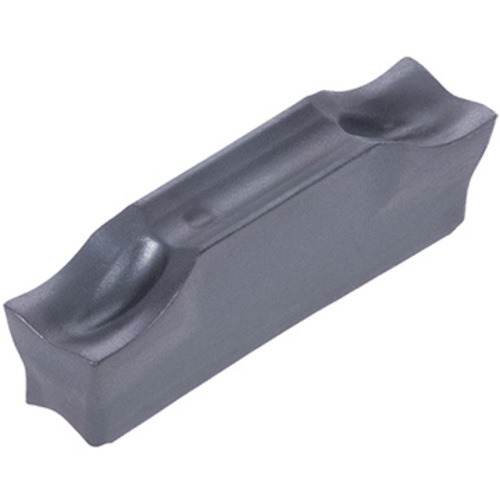

Parting Off Insert; 0.118″ CW × 0.354″ Length × 0.0079″ Corner Radius ; Carbide ; TiAlN ; AH7025

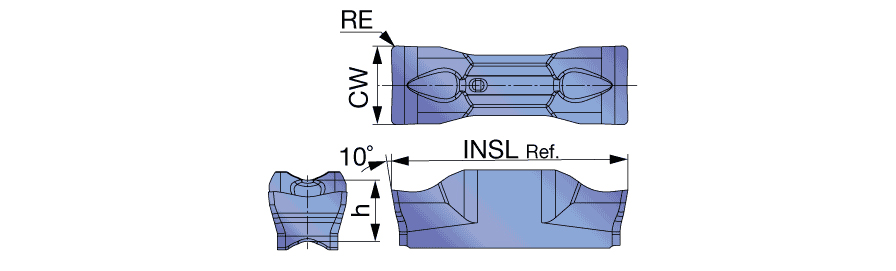

| Cutting Width (CW) | 0.118″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.354″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.591″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH7025 | Body Material | Carbide |
Product Features

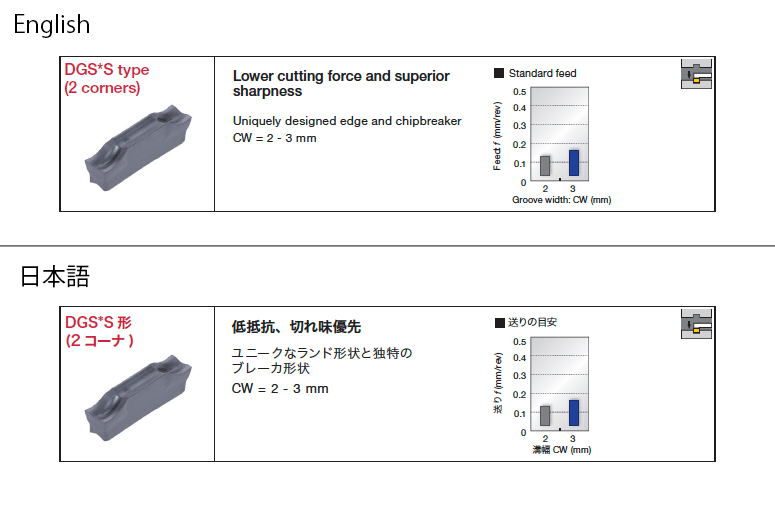

| Family Description | Double-ended insert for internal grooving and parting, small-size insert, lower cutting force and superior sharpness | Country of Origin | Japan |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
1.9
