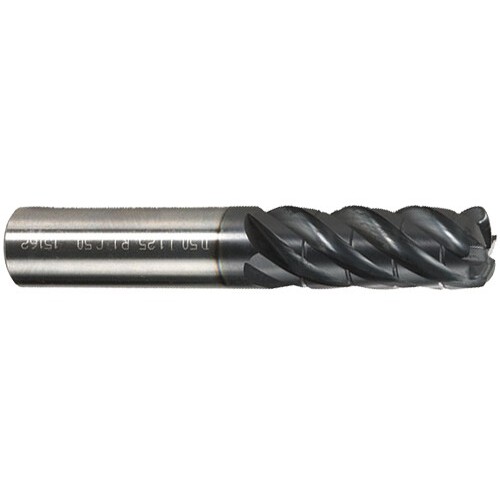

47D02048T4RP34 IN2006
SQ End Mill; 0.787″ Dia. × 1.89″ LOC × 0.787″ Shank Dia. × 4.095″ OAL ; 5 FL ; TiAlN
| Cutting Diameter (DC) | 0.787″ | Application | Roughing | Corner Rounding | Drill Mill | Drilling | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Corner Radius (RE) | 0.134″ |
| Depth of Cut Maximum (APMX) | 1.89″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4.095″ | Grade | IN2006 |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 0.787″ |
| Coating | TiAlN | Tool Type | Center Cut |
| Flute Count (NOF) | 5 | Body Material | Steel |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.787″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1.89″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
Product Features
| Family Description | Serrated cutting edge features flat peaks which leave a better surface finish when compared to competitors' roughing end mills Provides the greatest advantage in cavity milling and heavy roughing cuts | Country of Origin | S.Korea |
