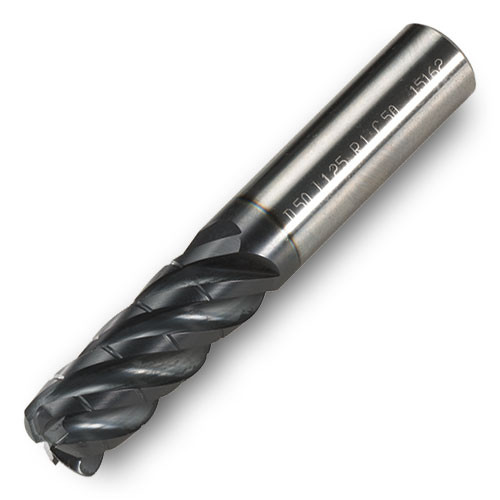

45D-7515S7RP15 IN2006
SQ End Mill; 3/4″ Dia. × 0.039″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.15″ RE ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 3/4″ | Application | | Drill Mill | Drilling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.15″ |
| Depth of Cut Maximum (APMX) | 0.039″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IN2006 |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 3/4″ |
| Coating | TiAlN | Tool Type | Center Cut |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.75″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Serrated cutting edge features flat peaks which leave a better surface finish when compared to competitors' roughing end mills Provides the greatest advantage in cavity milling and heavy roughing cuts | Country of Origin | Israel |
Shipping Info
Package Weight
0.772
