47A08004T0RA013 IN2006

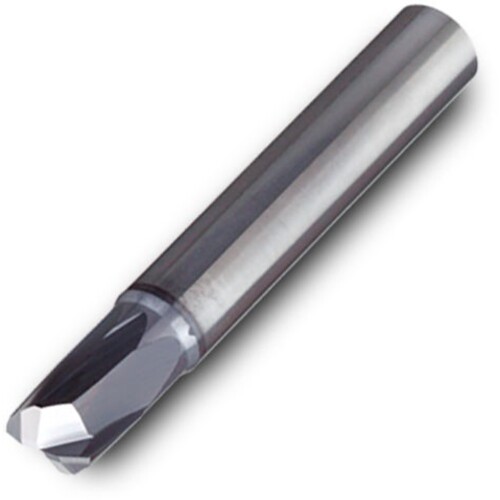

SQ End Mill; 0.315″ Dia. × 0.016″ LOC × 0.315″ Shank Dia. × 2.48″ OAL ; 0.064″ RE ; 4 FL ; 1.059″ LBS ; Carbide ; TiAlN
| Cutting Diameter (DC) | 0.315″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Application | Shouldering |
| Depth of Cut Maximum (APMX) | 0.016″ | Corner Radius (RE) | 0.064″ |
| Overall Length (OAL) | 2.48″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 0.299″ |
| Coating | TiAlN | Tool Type | Center Cut |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.315″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1.059″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | For cast iron, alloy and hardened steel up to 65HRc, stainless steel, titanium and nickel based alloys | Country of Origin | Israel |
Shipping Info
Package Weight
0.101
