47A06003T7RA010 IN2006

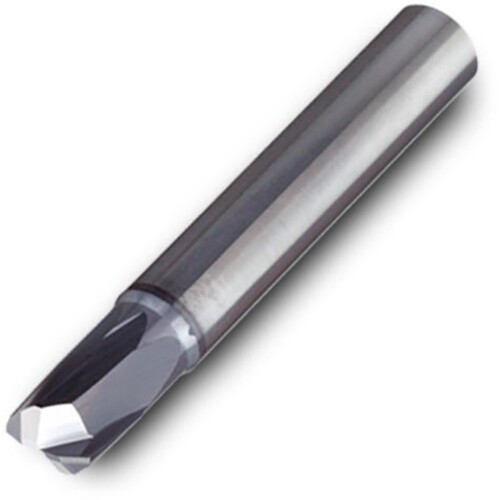

SQ End Mill; 0.236″ Dia. × 0.012″ LOC × 0.236″ Shank Dia. × 2.244″ OAL ; 0.048″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.236″ | Usable Length (LU) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Application | Shouldering |
| Depth of Cut Maximum (APMX) | 0.012″ | Corner Radius (RE) | 0.048″ |
| Overall Length (OAL) | 2.244″ | Neck Diameter (DN) | 0.224″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Body Material | Steel |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.236″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | For cast iron, alloy and hardened steel up to 65HRc, stainless steel, titanium and nickel based alloys | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
