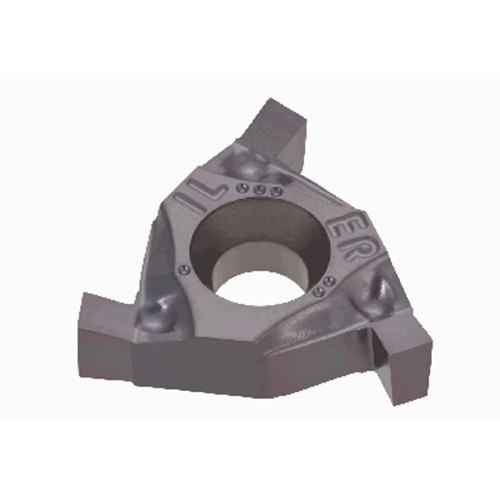

GTGN-16ER/IL100 SH730
Parting Off Insert; 0.039″ CW × 0.0039″ Corner Radius ; Carbide ; TiAlN ; SH730

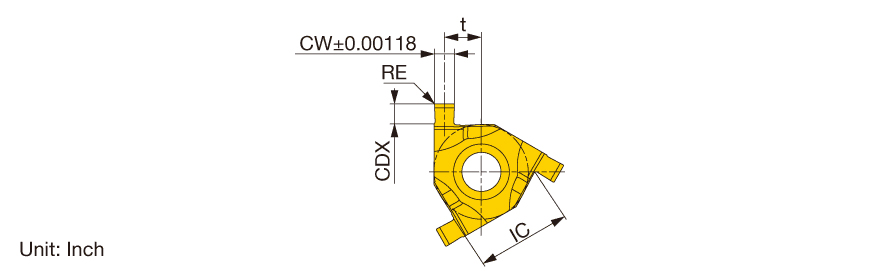

| Cutting Width (CW) | 0.039″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0039″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH730 | Body Material | Carbide |
Product Features
| Family Description | Shallow grooving inserts for threading toolholders | Country of Origin | ISRAEL |
| Remarks | GTGN insert can be used for both external and internal machining, but the toolholder hand is reversed. GTGN 16ER/IL... inserts are used with external right hand toolholders (R) and internal left hand toolholders (L). GTGN 16EL/IR... inserts are used with external left hand toolholders (L) and internal right hand toolholders (R). Shim for GTGN depends on the toolholder type. |
Shipping Info
Package Weight
0.110
