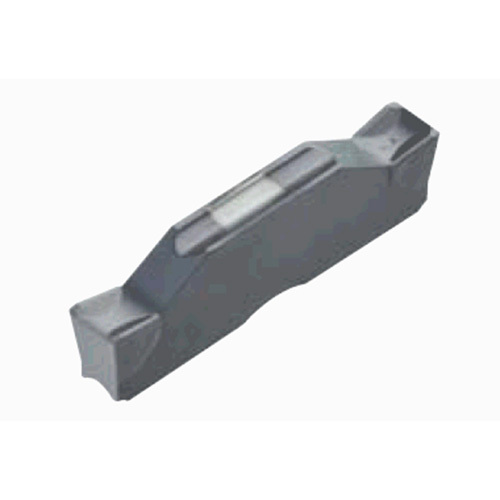

DGM2-002-15L GH130
Parting Off Insert; 0.079″ CW × 0.762″ Length × 0.0008″ Corner Radius ; Carbide ; TiCNO ; GH130

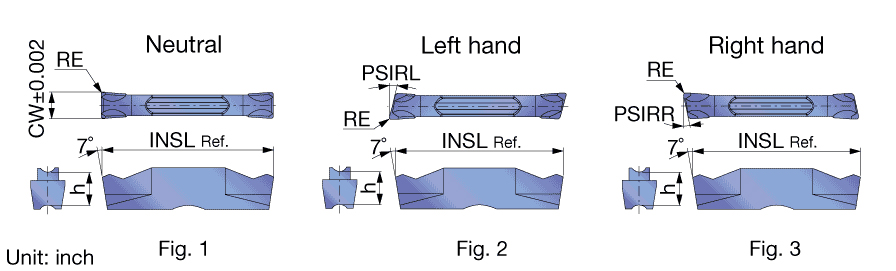

| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.0008″ | Cutting Edge Angle Major Left Hand (PSIRL) | 15 Degrees |
| Insert Length (INSL) | 0.762″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 1.366″ |
| Coating | TiCNO | Measurement Type | Inch |
| Grade | GH130 | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.002 inch | Country of Origin | S.Korea |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.007
Related Documentation
Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
