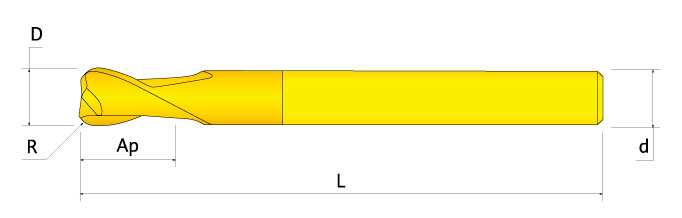

45U-0600R0RB01 IN2003
| Cutting Diameter (DC) | 0.063″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 0.03″ | Grade | IN2003 |
| Overall Length (OAL) | 2-1/2″ | Neck Diameter (DN) | 0.056″ |
| Cutting Edge Material | Carbide | Body Half Taper Angle (BHTA) | 20 Degrees |
| Coating | TiAlN | Tool Type | Center Cut |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.063″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 0.252″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.082
