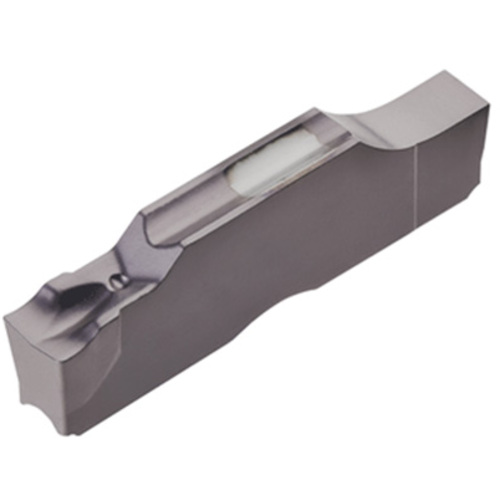

SGS3-020-15R GH130
Parting Off Insert; 0.118″ CW × 0.787″ Length × 0.0079″ Corner Radius ; Carbide ; TiCNO ; GH130

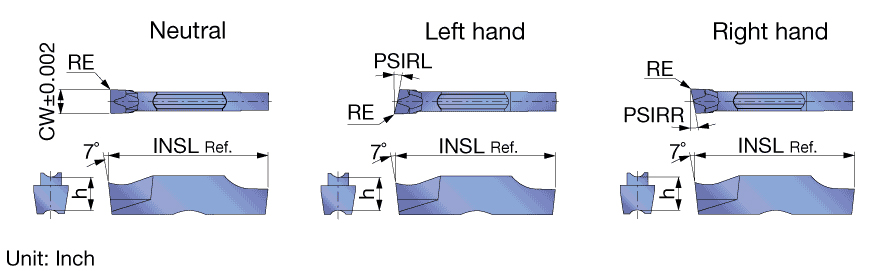

| Cutting Width (CW) | 0.118″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 0.787″ | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Face Turn-Groove Inserts |
| Coating | TiCNO | Measurement Type | Inch |
| Grade | GH130 | Body Material | Carbide |
Product Features
| Family Description | Single-ended inserts with low cutting force chipbreaker, forexternal grooving & parting, tolerance of insert width +-0.002 inch. | Country of Origin | S.Korea |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.009
Related Documentation
Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
