DGM3-020 GH130
Parting Off Insert; 3 mm CW × 20 mm Length × 0.2 mm Corner Radius ; Carbide ; TiCNO ; GH130

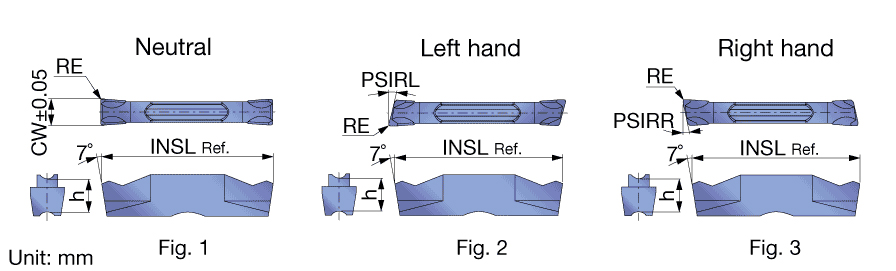

| Cutting Width (CW) | 3 mm | Application | | Inserts | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 20 mm | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 36 mm |
| Coating | TiCNO | Measurement Type | Metric |
| Grade | GH130 | Body Material | Carbide |
Product Features
| Family Description | Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.05mm | Country of Origin | S.Korea |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.01
Related Documentation

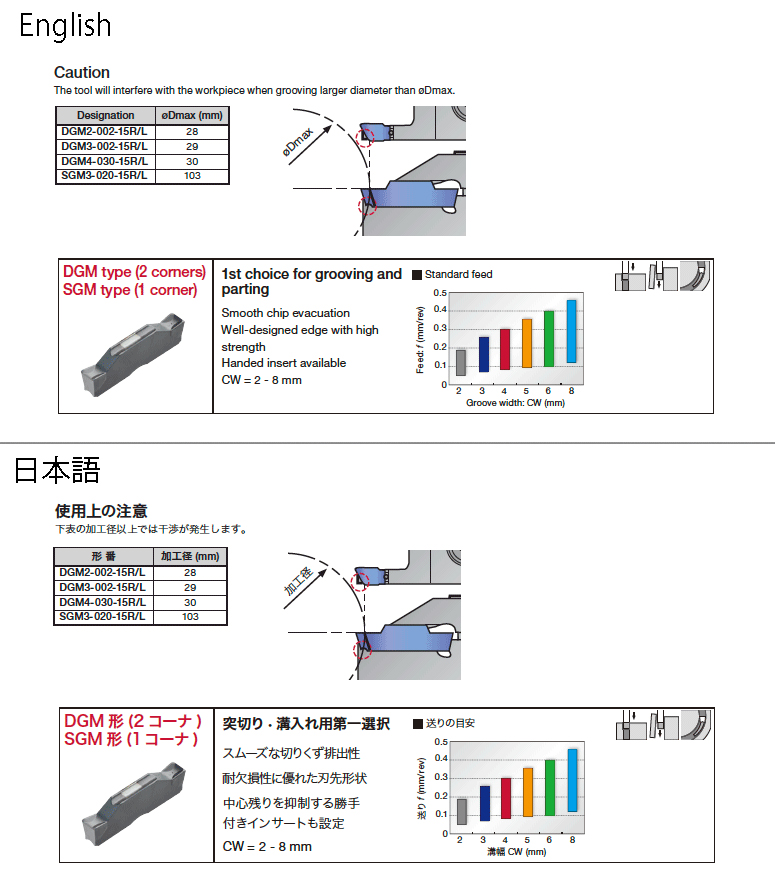

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
