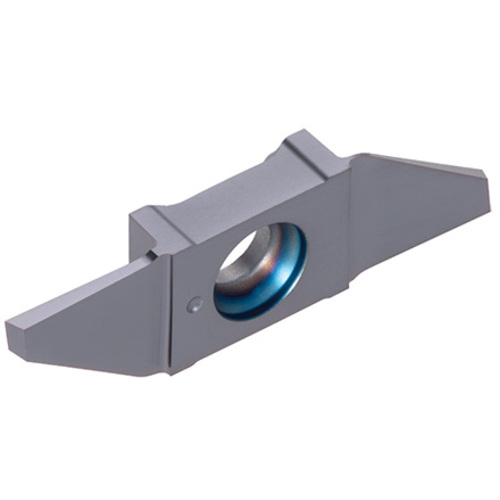

JVPN12L10F005-20 SH725

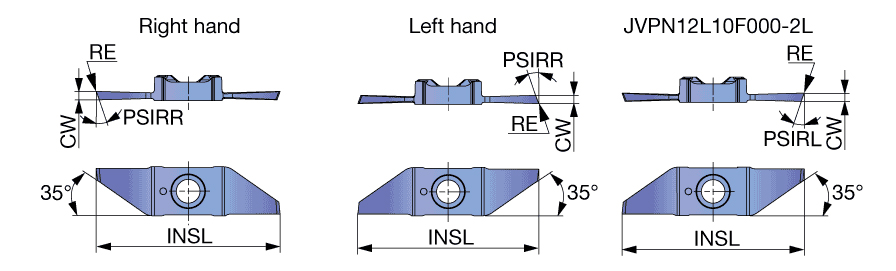

Parting Off Insert; 0.039″ CW × 0.854″ Length × 0.002″ Corner Radius ; Carbide ; TiAlN ; SH725

| Cutting Width (CW) | 0.039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.002″ | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Insert Length (INSL) | 0.854″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.472″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
| Application | | Inserts | |

Product Features
| Family Description | Double ended insert for parting-off | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
