49J-1862R5RL100 IN05S

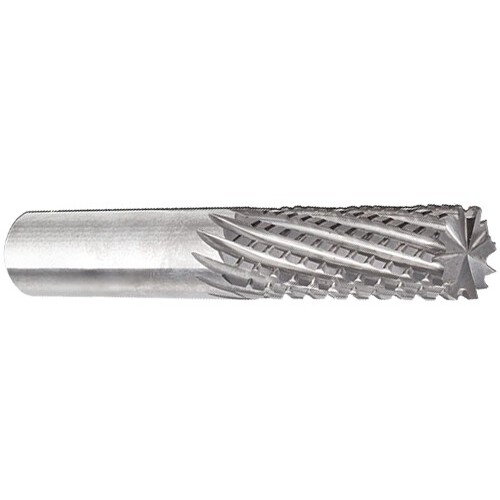

SQ End Mill; 0.187″ Dia. × 5/8″ LOC × 0.188″ Shank Dia. × 2.1″ OAL ; 10 FL
| Cutting Diameter (DC) | 0.187″ | Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 0.188″ | Application | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | IN05S |
| Overall Length (OAL) | 2.1″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Coating | AlTiN | Decimal Equivalent | 0.187″ |
| Flute Count (NOF) | 10 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 15 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | Sharp |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.05
