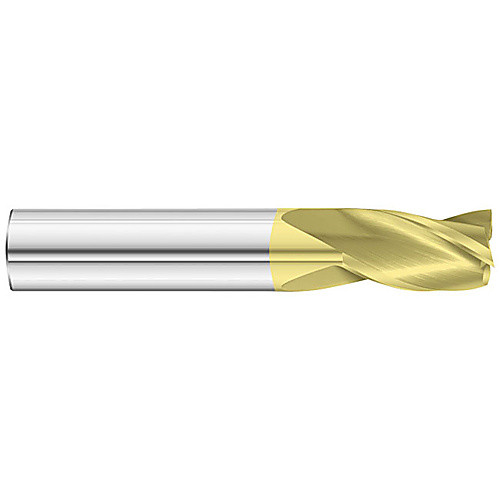

Square End Mill; 5/64″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; TiN ; Series 3300
Square End Mill; 5/64″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; TiN ; Series 3300
| Cutting Diameter (DC) | 5/64″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1/4″ | Usable Length (LU) | 1/4″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.078125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3300 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.013
