1TG1B010017X4R00

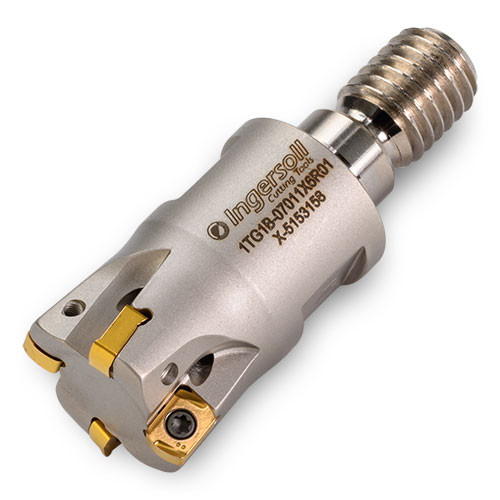

Indexable End Mill; 10 mm Dia. × 0.5 mm LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 5.65 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.5 mm | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 0.5 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 9.7 mm |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 17 mm | Cutting Diameter Maximum (DCX) | 10 mm |
| Corner Radius (RE) | 0.9 mm |
Product Features
| Family Description | .5 mm (.020″) Max. depth of cut Two different insert edge preparations provide application flexibility Excellent high feed performance & economy! | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.132
