JXPS12R10F SH725

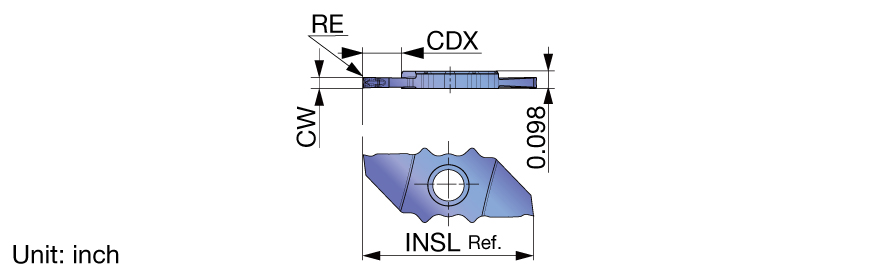

Parting Off Insert; 0.039″ CW × 0.984″ Length × 0.002″ Corner Radius ; Carbide ; TiAlN ; SH725
| Cutting Width (CW) | 0.039″ | Application | | Inserts | |
| Corner Radius (RE) | 0.002″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.984″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.472″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
Product Features
| Family Description | Double-ended insert for parting-off, with 3D chipbreaker, sharp cutting edge. | Country of Origin | Japan |
| Remarks | Max grooving depth varies depending on workpiece diameters. For max grooving depth, click on "Product report". |
Shipping Info
Package Weight
0.999
