DGG600-040 KS05F

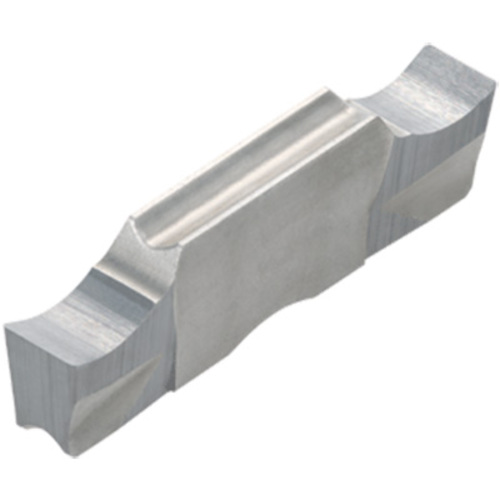

Parting Off Insert; 0.236″ CW × 0.984″ Length × 0.0157″ Corner Radius ; Carbide ; Uncoated ; KS05F

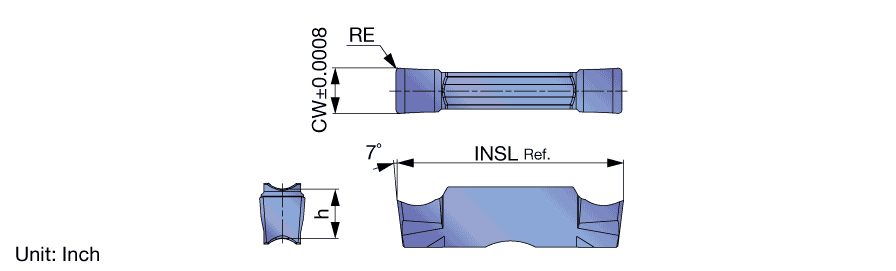

| Cutting Width (CW) | 0.236″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0157″ | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.984″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 1.811″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | KS05F | Body Material | Carbide |
Product Features

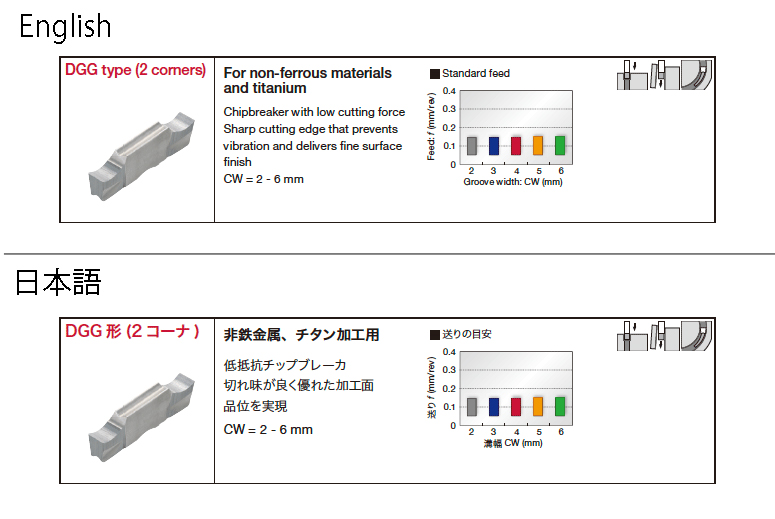

| Family Description | Double-ended inserts for external / face grooving, for machining non-ferrous materials and titanium, tolerance of insert width +-0.0008 inch | Country of Origin | Japan |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.028
