DGIM2-020 GH130

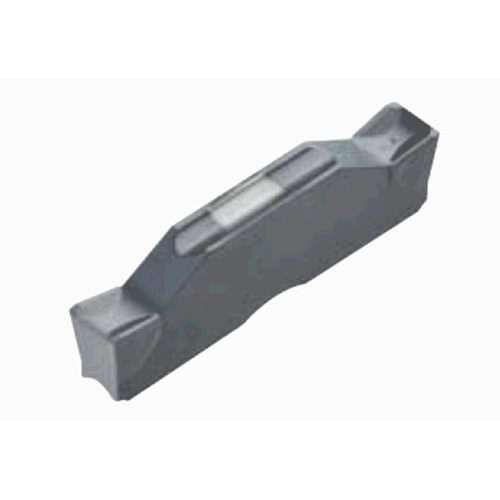

Parting Off Insert; 0.079″ CW × 0.787″ Length × 0.0079″ Corner Radius ; Carbide ; TiCNO ; GH130

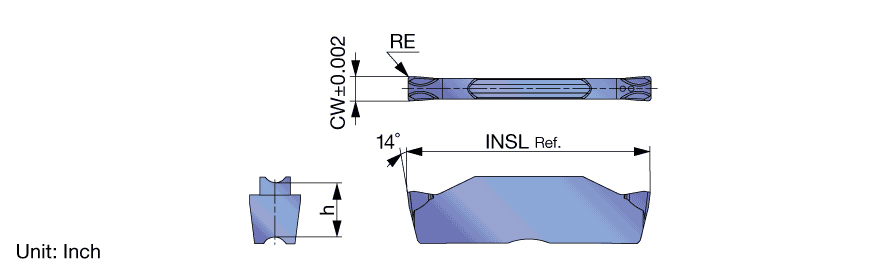

| Cutting Width (CW) | 0.079″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 0.787″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCNO | Body Material | Carbide |
| Grade | GH130 |
Product Features

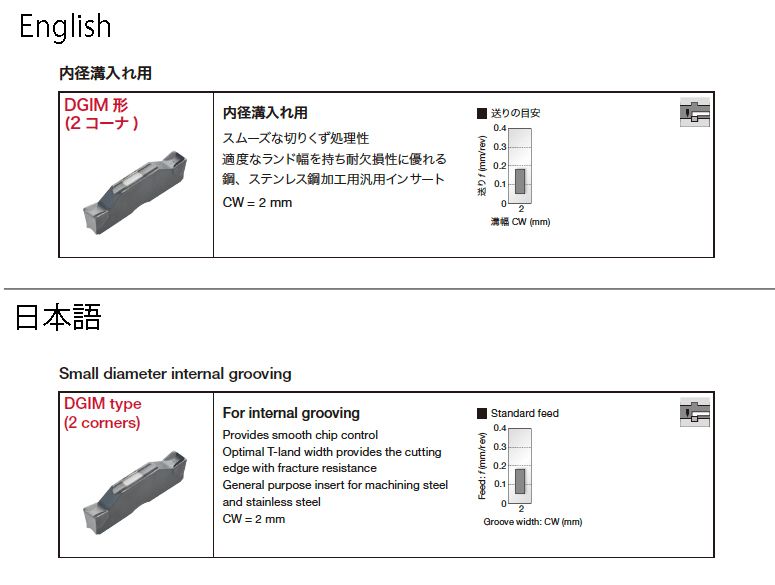

| Family Description | Double-ended inserts, internal grooving, insert width 0.079 inch only, for general purpose, tolerance of insert width +-0.002 inch | Country of Origin | S.Korea |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.007
