TCL27-250-020 AH725

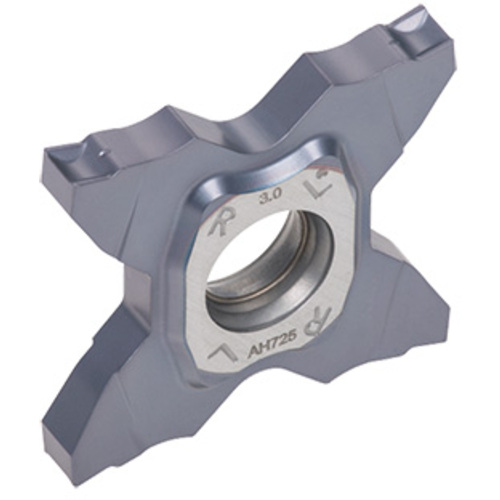

Parting Off Insert; 0.098″ CW × 0.0079″ Corner Radius ; Carbide ; TiAlN ; AH725
| Cutting Width (CW) | 0.098″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.504″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Precision grooving and parting off inserts with 4 cutting edges for light cutting | Country of Origin | Israel |

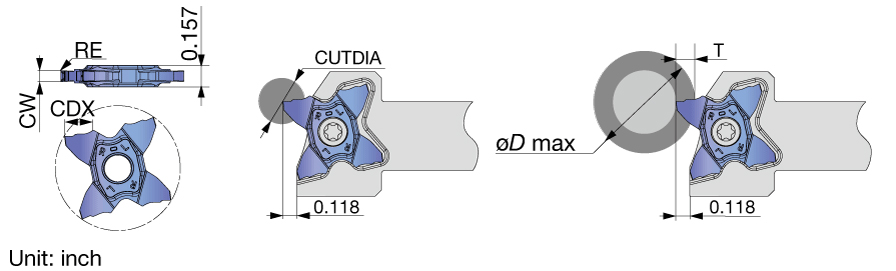

| Remarks | For the relation between groove depth (T) and max diameter (D max), click on "Product report". |
Shipping Info
Package Weight
0.08
