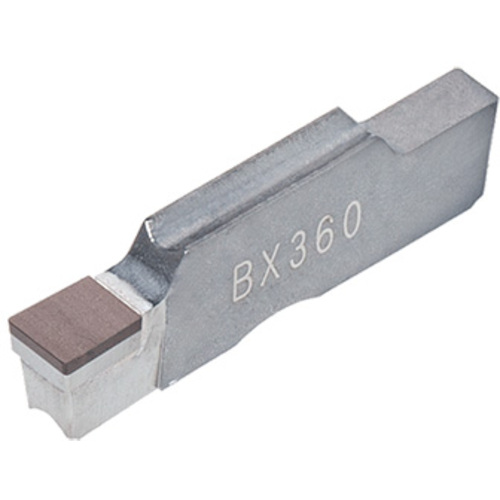

SGN300-020 BX360
Parting Off Insert; 0.118″ CW × 0.787″ Length × 0.0079″ Corner Radius ; PCBN ; Uncoated ; BX360

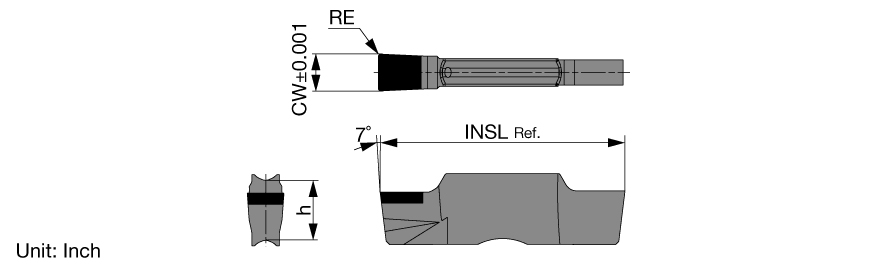

| Cutting Width (CW) | 0.118″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Hard Materials | |
| Insert Length (INSL) | 0.787″ | Tool Type | Groove Turn Ultra hard Inserts |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX360 |
Product Features
| Family Description | Single-ended inserts for external grooving of hardened materials, tolerance of insert width +-0.001 inch | Country of Origin | Japan |
| Remarks | For "Standard cutting conditions", click on "More Info". The last letter of designation means as below. No symbol: Edge preparation for continuous cutting S: Edge preparation for light interrupted cutting H: Edge preparation for heavy interrupted cutting |
Shipping Info
Package Weight
0.029
