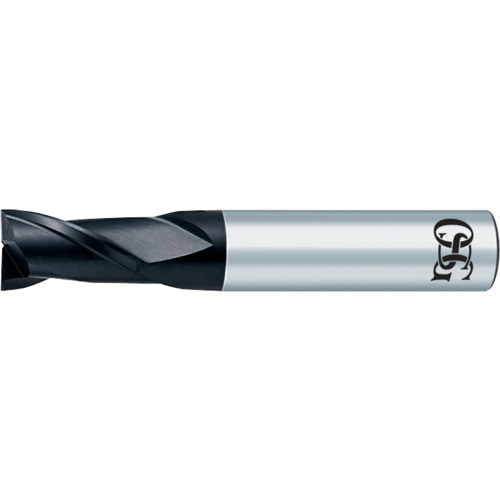

5/32″ Dia. × 3/16″ Shank × 15/32″ DOC × 2″ OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
Square End Mill; 5/32″ Dia. × 15/32″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; CrN ; Series 3621
| Cutting Diameter (DC) | 5/32″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 15/32″ | Tool Type | Center Cut |
| Overall Length (OAL) | 2″ | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1563″ |
| Coating | CrN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 3621 |
Product Features
| Remarks | •Solid Carbide 2-Flute Ball End Single End Mills •Used for radius and contouring part surfaces •Designed to cut materials ranging from nickel base alloy, stainless, tough alloys, abrasives and non-ferrous | Country of Origin | Japan |
Shipping Info
Package Length
2.05000
Package Width
.45000
Package Weight
.0300
