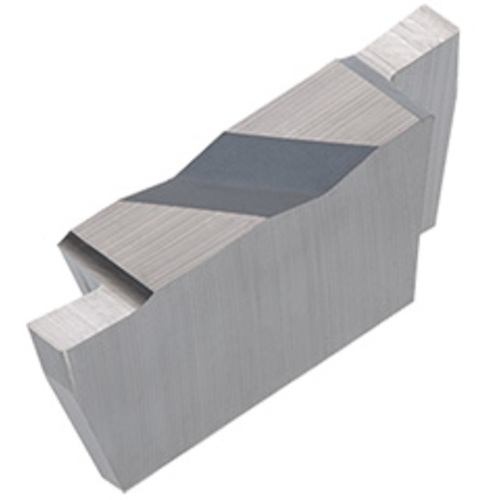

XGL6310-02 NS9530

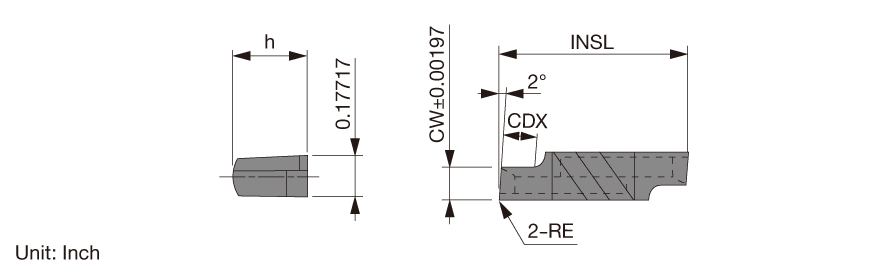

Parting Off Insert; 0.039″ CW × 0.787″ Length × 0.0079″ Corner Radius ; Cermet ; Uncoated ; NS9530
| Cutting Width (CW) | 0.039″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 0.787″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Cermet | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | NS9530 |
Product Features
| Family Description | Double-ended inserts for external & internal grooving, CBN inserts availavle | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.130
