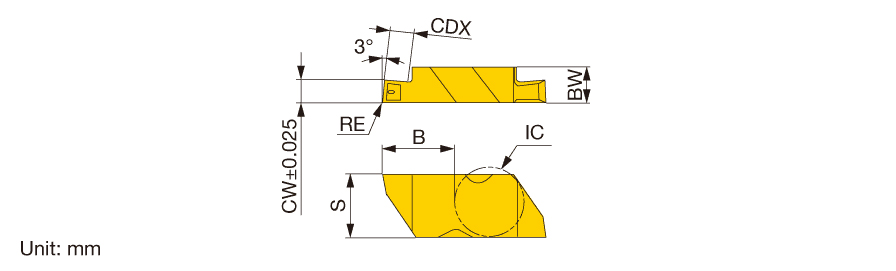

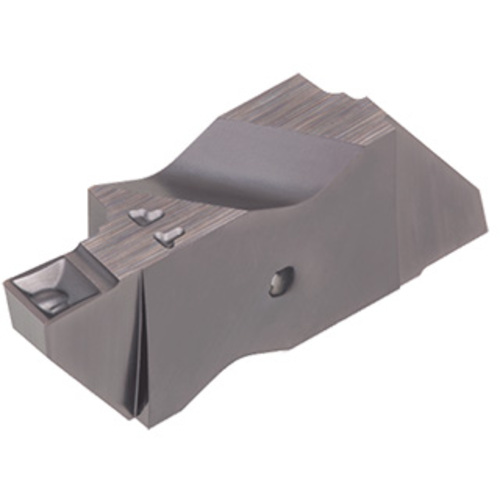

FLG-3M250R-CB AH110
Parting Off Insert; 2.5 mm CW × 0.19 mm Corner Radius ; Carbide ; TiAlN ; AH110
| Cutting Width (CW) | 2.5 mm | Application | | Inserts | |
| Corner Radius (RE) | 0.19 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 7.1 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH110 | Body Material | Carbide |
Product Features
| Family Description | Double-ended inserts for external & internal grooving with CB chipbreaker, tolerance of insert width +-0.025mm | Country of Origin | USA |
Shipping Info
Package Weight
0.249
