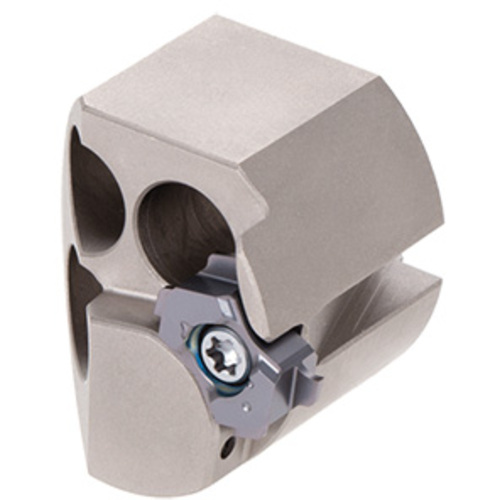

S16-STCIL10-D220-H
Grooving Toolholder ; 0.63″ Shank Dia. ; 0.02″ CW Min. ; 0.118″ CW Max. ; 0.079″ Max Depth ; Left Hand ; Steel

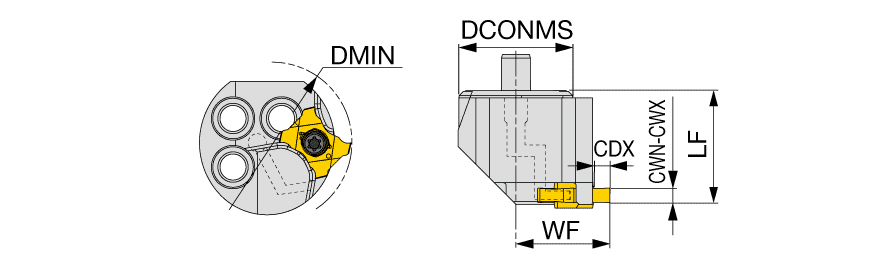

| Cutting Width Minimum (CWN) | 0.02″ | Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Cutting Width Maximum (CWX) | 0.118″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.079″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 0.866″ | Body Material | Steel |
| Functional Width (WF) | 0.512″ | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 0.63″ | Measurement Type | Inch |
Product Features
| Family Description | Exchangeable boring head for internal shallow grooving, with highly economical 4 cutting edges insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
