S32-CTIL-4T13D520-H
Grooving Toolholder ; 1.26″ Shank Dia. ; 0.138″ CW Min. ; 0.177″ CW Max. ; 0.512″ Max Depth ; Left Hand ; Steel

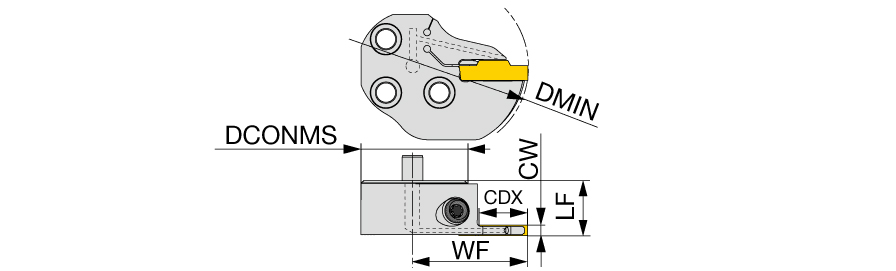

| Cutting Width Minimum (CWN) | 0.138″ | Connection Diameter Machine Side (DCONMS) | 1.26″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.512″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 2.047″ | Body Material | Steel |
| Functional Width (WF) | 1.319″ | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 0.63″ | Measurement Type | Inch |
Product Features
| Family Description | Exchangeable boring head for internal grooving, general purpose type | Country of Origin | Japan |
| Remarks | DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
Shipping Info
Package Weight
158
