JSXXR163
Grooving Toolholder ; 1″ Shank Height ; 1″ Shank Width ; 0.024″ CW Min. ; 0.098″ CW Max. ; 0.413″ Max Depth ; Right Hand ; Steel

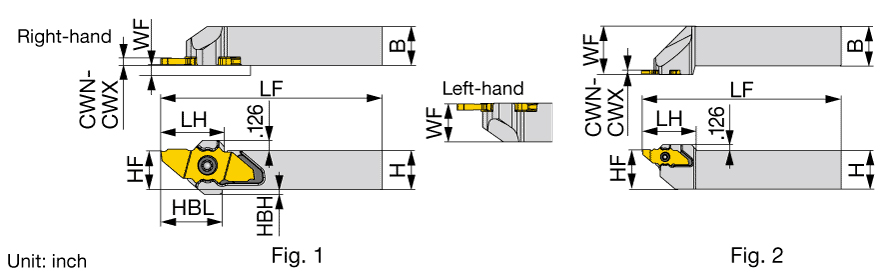

| Cutting Width Minimum (CWN) | 0.024″ | Head Length (LH) | 1.339″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.413″ | Application | | Ext Threading | External grooving | For Miniature machining | Parting off | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
| Functional Length (LF) | 5.35″ |
Product Features
| Family Description | Parting off tools for swiss lathes | Country of Origin | Japan |
| Remarks | When JX**12... insert is used, "LF", "LH" and "HBL" are shorter 2 mm. When JX**06... insert is used, "LF", "LH" and "HBL" are shorter 4 mm. When JX**20... insert is used, "LF", "LH" and "HBL" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping. |
