CTIR06S2T03-D08U
Grooving Toolholder ; 0.35″ Shank Height ; 3/8″ Shank Dia. ; 0.059″ CW Min. ; 0.098″ CW Max. ; 0.118″ Max Depth ; Right Hand ; Steel

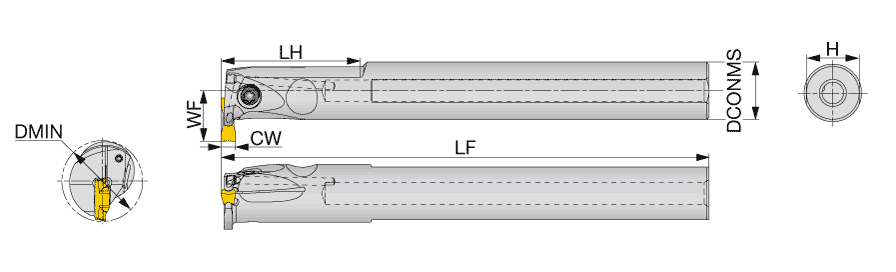

| Cutting Width Minimum (CWN) | 0.059″ | Head Length (LH) | 7/8″ |
| Cutting Width Maximum (CWX) | 0.098″ | Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Cutting Depth Maximum (CDX) | 0.118″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.35″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 1/2″ | Body Material | Steel |
| Functional Width (WF) | 0.319″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 4″ | Measurement Type | Inch |
Product Features
| Family Description | Internal grooving & turning toolholder with small-size insert | Country of Origin | JAPAN |
