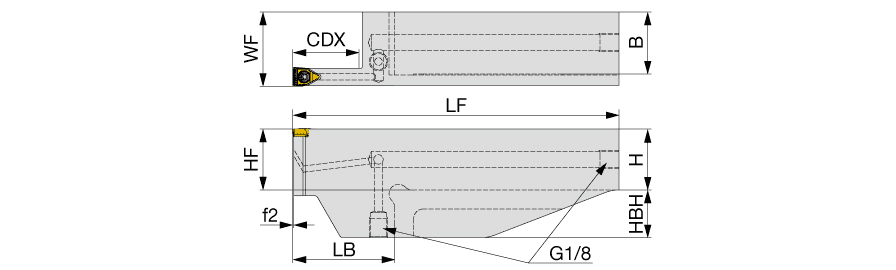

| Cutting Depth Maximum (CDX) | 1.969″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 1-1/2″ | Application | | External grooving | |
| Shank Width (B) | 1.52″ | Body Material | Steel |
| Functional Width (WF) | 1.776″ | Tool Type | Parting & Grooving Tools |
| Functional Length (LF) | 7″ | Measurement Type | Inch |

Product Features

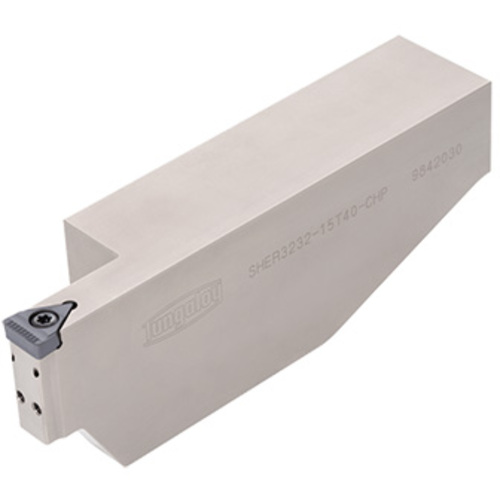

| Family Description | External grooving and profiling toolholder with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | The values for CDX, LB, LF and f2 are true when HGM insert is assembled. Note that these values differs when HBL insert is assembled. |
