QSER20-8D102-CHP

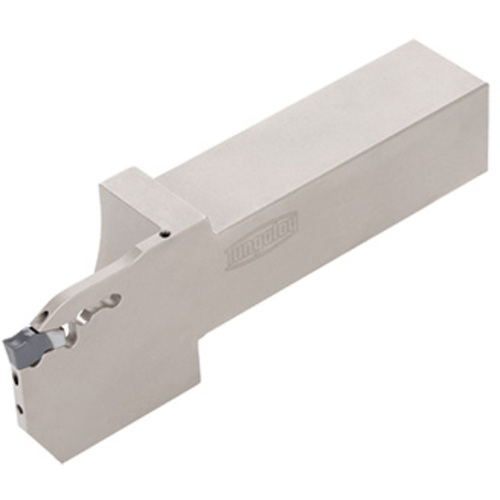

Grooving Toolholder ; 1-1/4″ Shank Height ; 1-1/4″ Shank Width ; 0.295″ CW Min. ; 0.334″ CW Max. ; 2.008″ Max Depth ; Right Hand ; Steel

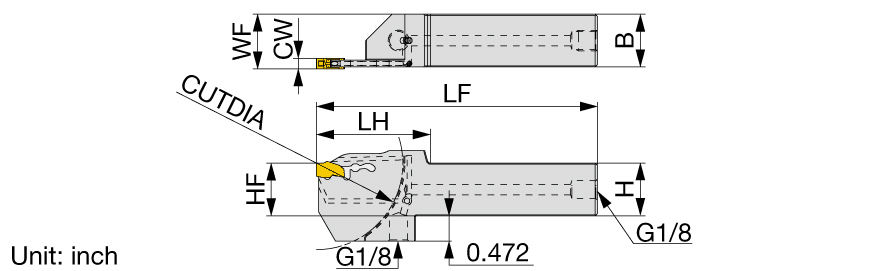

| Cutting Width Minimum (CWN) | 0.295″ | Head Length (LH) | 2.48″ |
| Cutting Width Maximum (CWX) | 0.334″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2.008″ | Application | | External grooving | Parting off | |
| Shank Height (H) | 1-1/4″ | Body Material | Steel |
| Shank Width (B) | 1-1/4″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 1.266″ | Measurement Type | Inch |
| Functional Length (LF) | 7″ |
Product Features
| Family Description | External toolholder for deep grooving and parting, with high presure coolant capability | Country of Origin | JAPAN |
