QSER2525-3D66-CHP
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 2.5 mm CW Min. ; 3.49 mm CW Max. ; 33 mm Max Depth ; Right Hand ; Steel

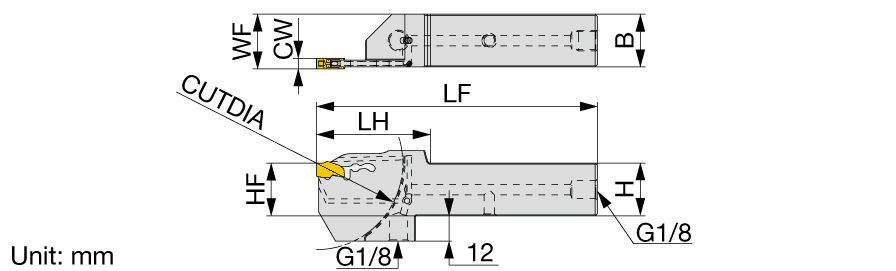

| Cutting Width Minimum (CWN) | 2.5 mm | Head Length (LH) | 42 mm |
| Cutting Width Maximum (CWX) | 3.49 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 33 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 25.3 mm | Measurement Type | Metric |
| Functional Length (LF) | 121 mm |
Product Features
| Family Description | External toolholder for deep grooving and parting, with high presure coolant capability | Country of Origin | JAPAN |
