SVER08-10-CHP
Grooving Toolholder ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.02″ CW Min. ; 0.039″ CW Max. ; 0.157″ Max Depth ; Right Hand ; Steel

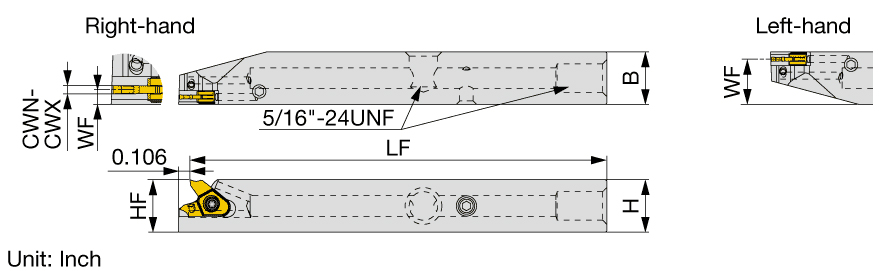

| Cutting Width Minimum (CWN) | 0.02″ | Functional Length (LF) | 4-3/4″ |
| Cutting Width Maximum (CWX) | 0.039″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.157″ | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.07″ | Measurement Type | Inch |
Product Features
| Family Description | External grooving and threading toolholder with high coolant capability. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | "WF" indicates the distance from the reference position to the center of the cutting edge width. |
