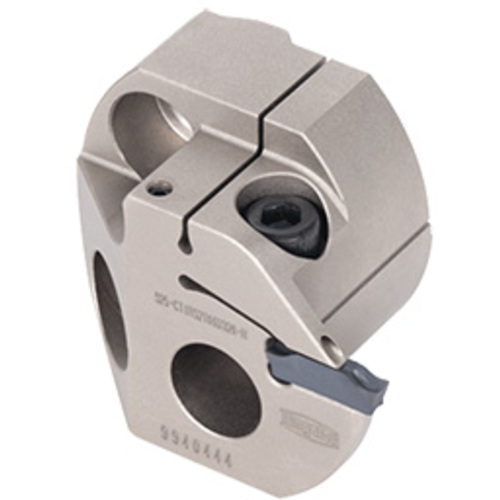

S25-CTIRS3T06D320-H
Grooving Toolholder ; 0.984″ Shank Dia. ; 0.098″ CW Min. ; 0.137″ CW Max. ; 0.236″ Max Depth ; Right Hand ; Steel

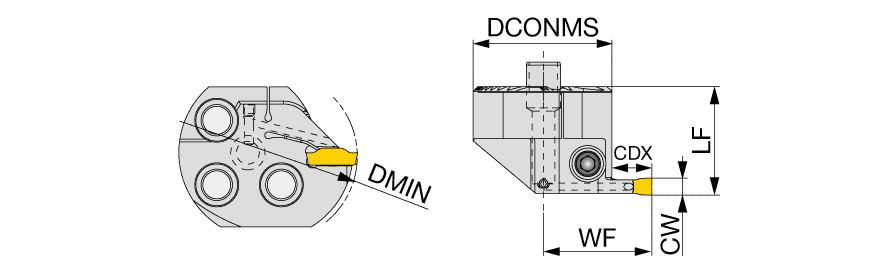

| Cutting Width Minimum (CWN) | 0.098″ | Connection Diameter Machine Side (DCONMS) | 0.984″ |
| Cutting Width Maximum (CWX) | 0.137″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.236″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 1.26″ | Body Material | Steel |
| Functional Width (WF) | 0.748″ | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 0.748″ | Measurement Type | Inch |
Product Features
| Family Description | Exchangeable boring head for internal grooving with small-size insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
