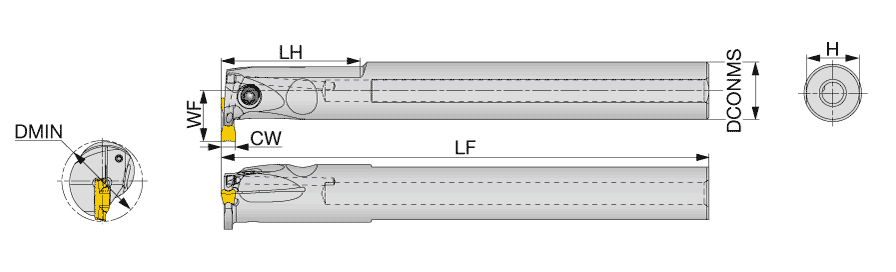

CTIR16S3T06-D200
Grooving Toolholder ; 15 mm Shank Height ; 16 mm Shank Dia. ; 2.5 mm CW Min. ; 3.49 mm CW Max. ; 6 mm Max Depth ; Right Hand ; Steel
| Cutting Width Minimum (CWN) | 2.5 mm | Head Length (LH) | 36 mm |
| Cutting Width Maximum (CWX) | 3.49 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Depth Maximum (CDX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 15 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 14.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 110 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal grooving & turning toolholder with small-size insert | Country of Origin | JAPAN |
