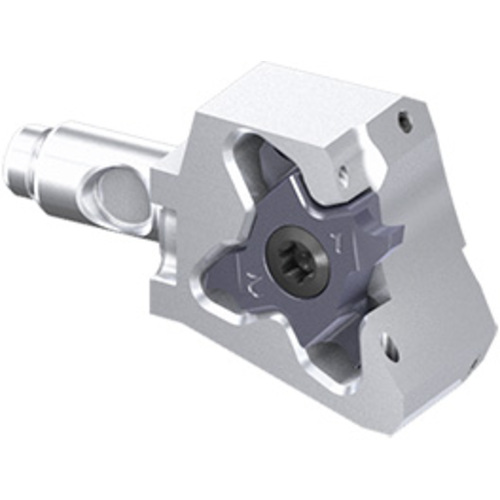

QC16-STCL18-CHP
Grooving Toolholder ; 0.63″ Shank Height ; 0.63″ Shank Width ; 0.013″ CW Min. ; 1/8″ CW Max. ; 0.138″ Max Depth ; Left Hand ; Steel

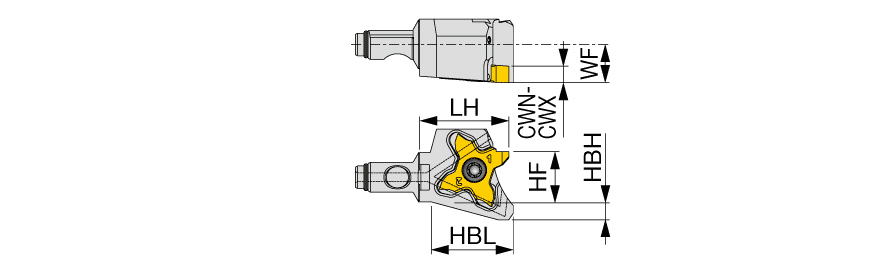

| Cutting Width Minimum (CWN) | 0.013″ | Functional Length (LF) | 0.843″ |
| Cutting Width Maximum (CWX) | 1/8″ | Head Length (LH) | 0.827″ |
| Cutting Depth Maximum (CDX) | 0.138″ | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 0.63″ | Application | | Ext Threading | External grooving | |
| Shank Width (B) | 0.63″ | Body Material | Steel |
| Functional Width (WF) | 0.512″ | Measurement Type | Inch |
Product Features
| Family Description | Modular head for external grooving and threading, with high pressure coolant capability | Country of Origin | Japan |
| Remarks | The left hand insert (L) is used for the left hand toolholder (L). Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. |
Shipping Info
Package Weight
100
