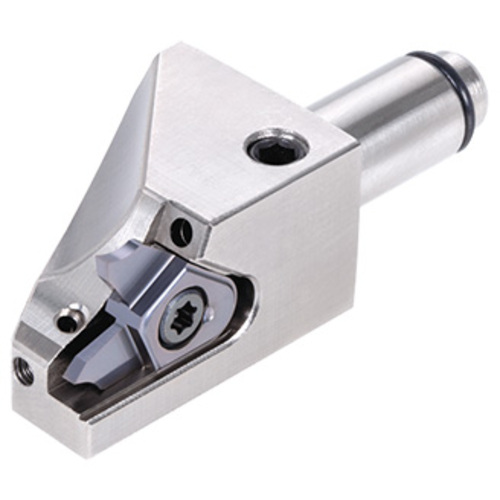

QC12-SVEL10-CHP
Grooving Toolholder ; 0.472″ Shank Height ; 0.472″ Shank Width ; 0.02″ CW Min. ; 0.039″ CW Max. ; 0.157″ Max Depth ; Left Hand ; Steel

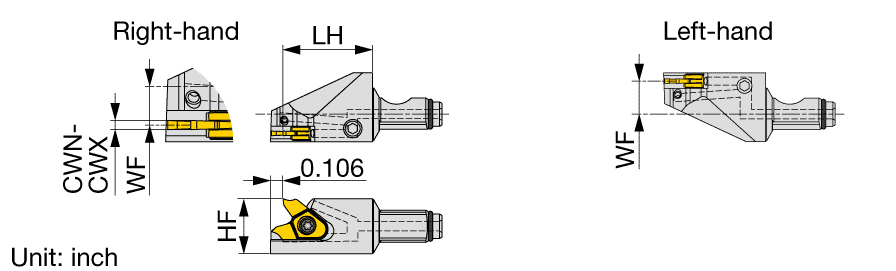

| Cutting Width Minimum (CWN) | 0.02″ | Head Length (LH) | 0.768″ |
| Cutting Width Maximum (CWX) | 0.039″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.157″ | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 0.472″ | Body Material | Steel |
| Shank Width (B) | 0.472″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.283″ | Measurement Type | Inch |
| Functional Length (LF) | 0.783″ |
Product Features
| Family Description | Modular head for external grooving and threading, with high pressure coolant capability | Country of Origin | Japan |
| Remarks | "WF" indicates the distance from the reference position to the center of the cutting edge width. Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. |
Shipping Info
Package Weight
0
