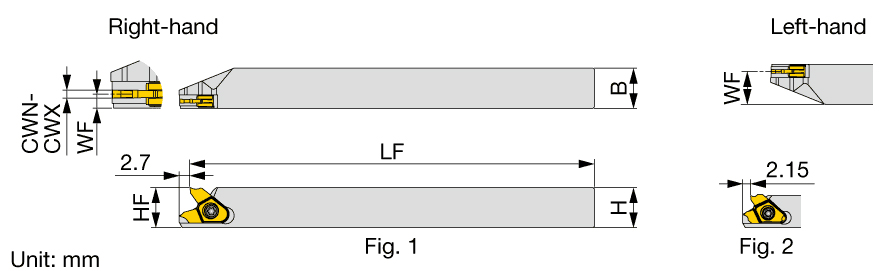

SVER0808H08
Grooving Toolholder ; 8 mm Shank Height ; 8 mm Shank Width ; 0.33 mm CW Min. ; 1 mm CW Max. ; 2.5 mm Max Depth ; Right Hand ; Steel
| Cutting Width Minimum (CWN) | 0.33 mm | Functional Length (LF) | 100 mm |
| Cutting Width Maximum (CWX) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2.5 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 8 mm | Body Material | Steel |
| Shank Width (B) | 8 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1.23 mm | Measurement Type | Metric |
Product Features
| Family Description | External grooving and threading toolholder | Country of Origin | Japan |
| Remarks | "WF" indicates the distance from the reference position to the center of the cutting edge width. |
