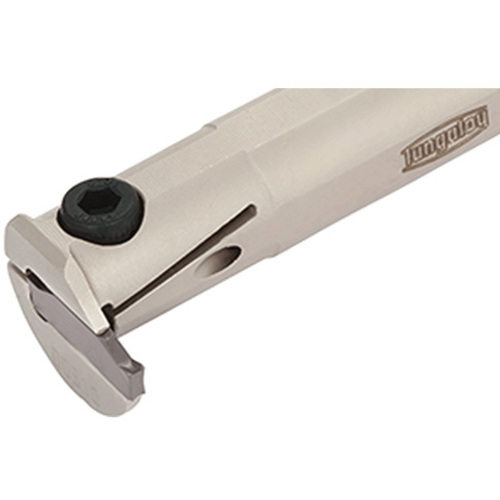

CTIL12-3T06-D16
Grooving Toolholder ; 0.661″ Shank Height ; 3/4″ Shank Dia. ; 0.098″ CW Min. ; 0.137″ CW Max. ; 0.236″ Max Depth ; Left Hand ; Steel

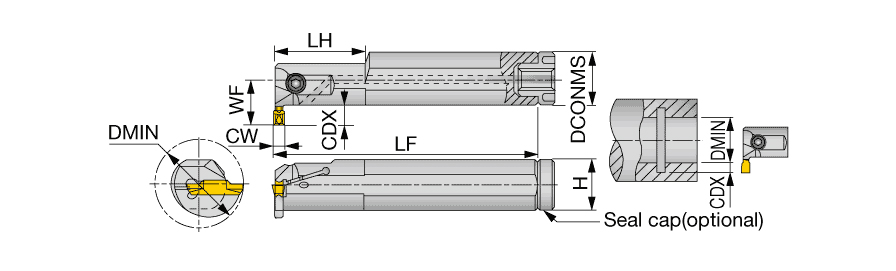

| Cutting Width Minimum (CWN) | 0.098″ | Head Length (LH) | 1.575″ |
| Cutting Width Maximum (CWX) | 0.137″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Depth Maximum (CDX) | 0.236″ | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 0.661″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 1″ | Body Material | Steel |
| Functional Width (WF) | 0.609″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 6-1/2″ | Measurement Type | Inch |
Product Features
| Family Description | Boring bar for Internal grooving & turning | Country of Origin | Japan |
| Remarks | For "DMIN (Minimum bore diameter)", click on "More Info". Torque: Recommended torque (Nm) for clamping. When machining the deep end of a hole, use a 1 corner insert. |
Shipping Info
Package Weight
0
Related Documentation

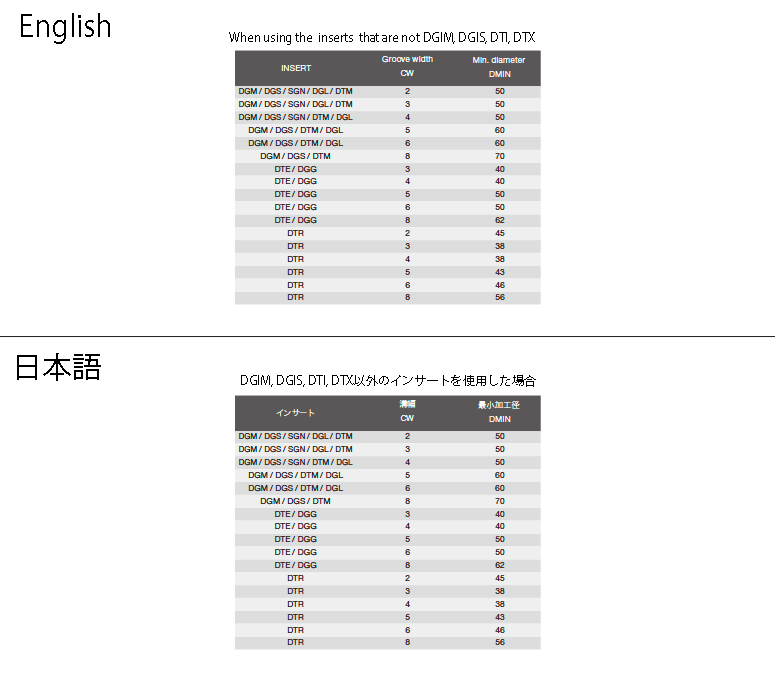

When using the inserts that are not DGIM, DGIS, DTI and DTX, insert geometry limits "DMIN (Minimum bore diameter)".
