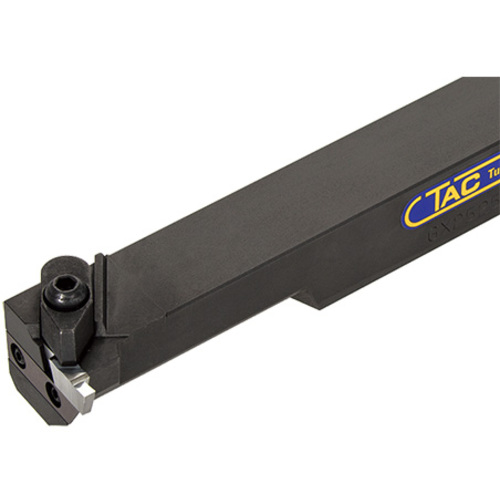

GX-1212RIU
Grooving Toolholder ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.039″ CW Min. ; 0.177″ CW Max. ; 0.236″ Max Depth ; Right Hand ; Steel

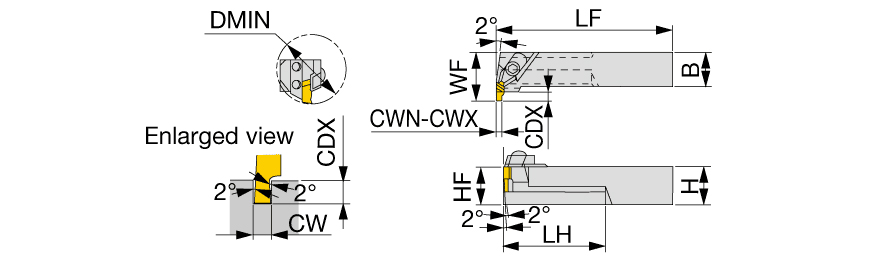

| Cutting Width Minimum (CWN) | 0.039″ | Functional Length (LF) | 4-1/2″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.236″ | Application | | Internal grooving | |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Indexable Turn & Groov Tools |
| Minimum Bore Diameter (DMIN) | 2.165″ | Measurement Type | Inch |
| Functional Width (WF) | 1.37″ |
Product Features
| Family Description | Toolholders for internal grooving | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (XGR) is used for the left hand toolholders (GX ****LI) , and the left hand insert (XGL) is used for the right hand toolholders (GX ****RI). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.822
