GX-1616REU
Grooving Toolholder ; 1″ Shank Height ; 1″ Shank Width ; 0.039″ CW Min. ; 0.177″ CW Max. ; 0.256″ Max Depth ; Right Hand ; Steel

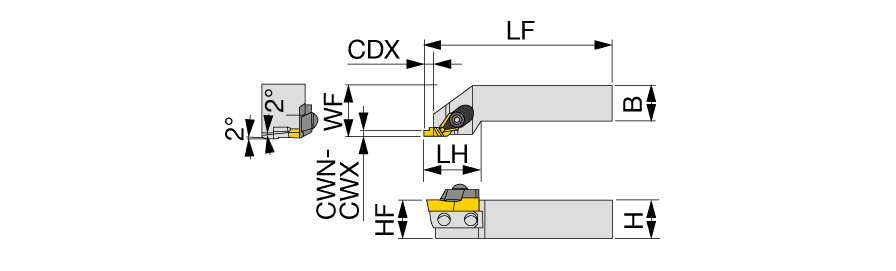

| Cutting Width Minimum (CWN) | 0.039″ | Head Length (LH) | 1.38″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.256″ | Application | | External grooving | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
| Functional Length (LF) | 5.9″ |
Product Features
| Family Description | External toolholders for grooving, with double-ended inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.704
