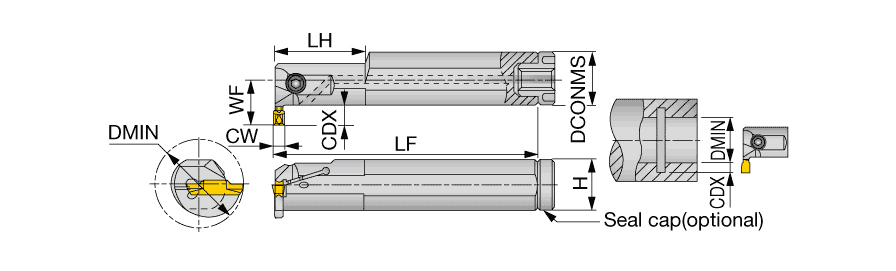

CTIL16-2T08-D250
Grooving Toolholder ; 15 mm Shank Height ; 16 mm Shank Dia. ; 1.5 mm CW Min. ; 2.49 mm CW Max. ; 8 mm Max Depth ; Left Hand ; Steel
| Cutting Width Minimum (CWN) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Width Maximum (CWX) | 2.49 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 8 mm | Application | | Internal grooving | |
| Shank Height (H) | 15 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 16.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | Boring bar for Internal grooving & turning | Country of Origin | JAPAN |
| Remarks | For "DMIN (Minimum bore diameter)", click on "More Info". Torque: Recommended torque (Nm) for clamping. When machining the deep end of a hole, use a 1 corner insert. |
Shipping Info
Package Weight
0.461
Related Documentation

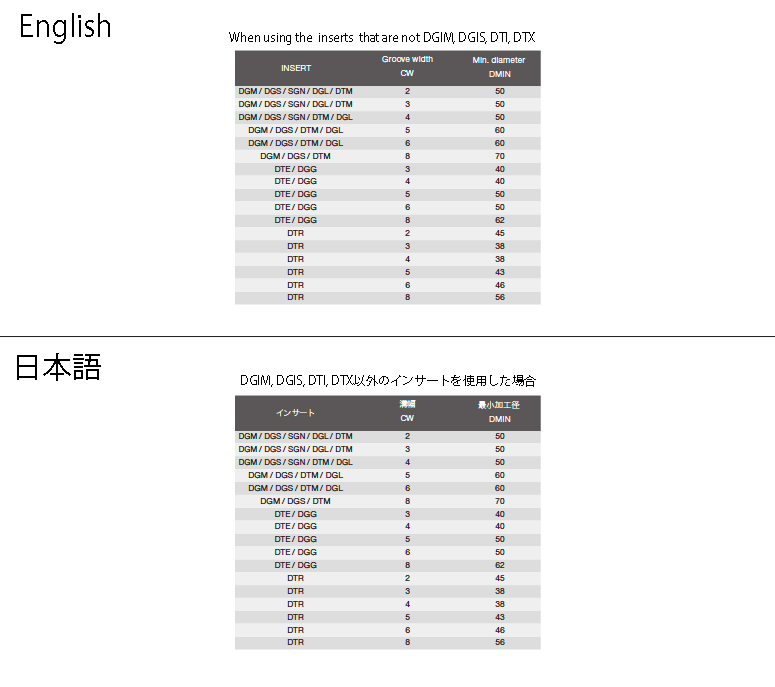

When using the inserts that are not DGIM, DGIS, DTI and DTX, insert geometry limits "DMIN (Minimum bore diameter)".
