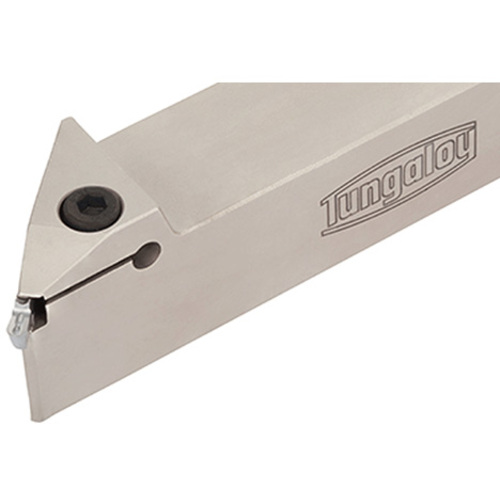

CGEUR2525-3T02

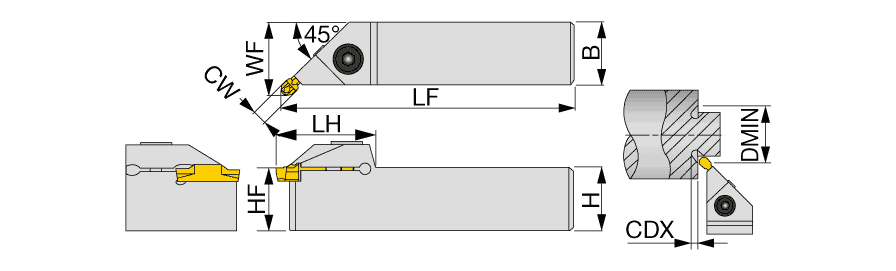

| Cutting Depth Maximum (CDX) | 2.8 mm | Head Length (LH) | 30 mm |
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Application | | Face grooving | |
| Minimum Bore Diameter (DMIN) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 28.3 mm | Tool Type | Face Grooving Tools |
| Functional Length (LF) | 150 mm | Measurement Type | Metric |
Product Features
| Family Description | External 45deg toolholders for undercutting | Country of Origin | S.Korea |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.570
