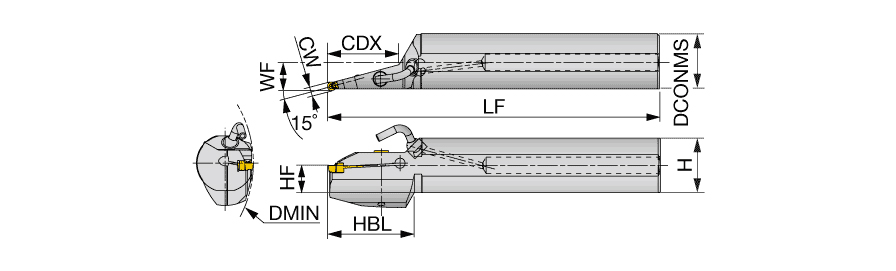

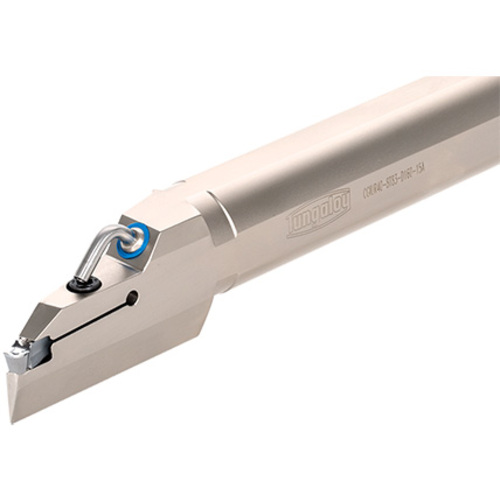

CGIUR40-8T83-D160-15A
| Cutting Depth Maximum (CDX) | 83 mm | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Shank Height (H) | 38.5 mm | Cutting Direction (HAND) | Right Hand |
| Minimum Bore Diameter (DMIN) | 160 mm | Application | | Internal grooving | |
| Functional Width (WF) | 20.5 mm | Body Material | Steel |
| Functional Length (LF) | 320 mm | Tool Type | Face Turning & grooving Tools |
| Head Length (LH) | 85 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal boring bar for machining aluminum wheel | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
5.622
Related Documentation
