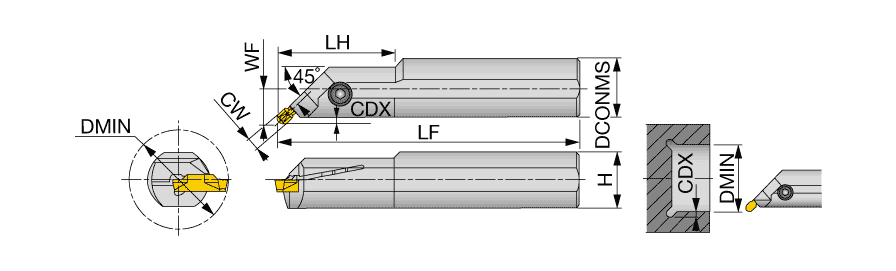

CGIUR20-4T02-D380
| Cutting Depth Maximum (CDX) | 2.8 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 19 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 38 mm | Body Material | Steel |
| Functional Width (WF) | 12.9 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 160 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | Boring bars for internal undercutting | Country of Origin | S.Korea |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.864
