TGTSR16-4-2
Grooving Toolholder ; 1″ Shank Height ; 1″ Shank Width ; 0.059″ CW Min. ; 0.091″ CW Max. ; 0.16″ Max Depth ; Right Hand ; Steel

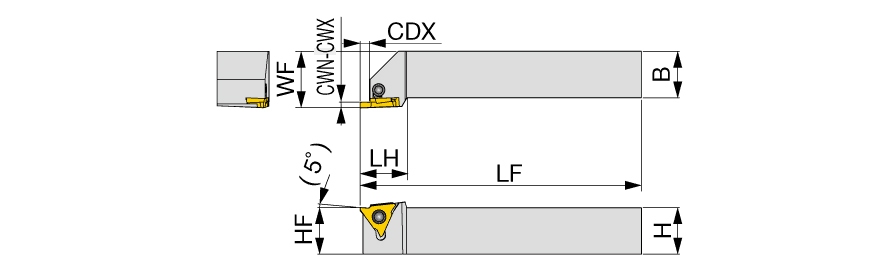

| Cutting Width Minimum (CWN) | 0.059″ | Head Length (LH) | 0.16″ |
| Cutting Width Maximum (CWX) | 0.091″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.16″ | Application | | External grooving | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
| Functional Length (LF) | 6″ |
Product Features
| Family Description | External toolholders for grooving, with triple corner inserts | Country of Origin | JAPAN |
| Remarks | The right hand insert (GBR) is used for the right hand toolholders (TGTSR) , and the left hand insert (GBL) is used for the left hand toolholders (TGTSL). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.653
