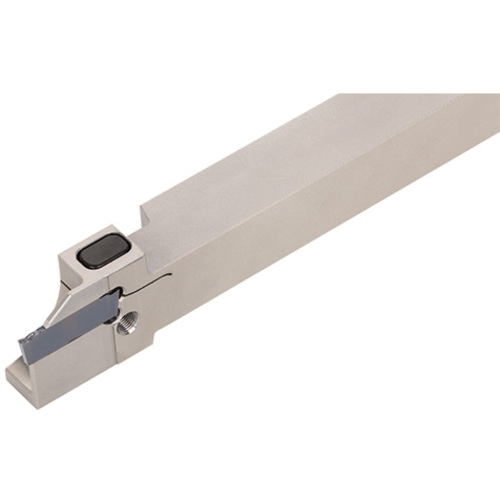

JTTEL1010H1.2D12-S
Grooving Toolholder ; 10 mm Shank Height ; 10 mm Shank Width ; 1.2 mm CW Min. ; 1.2 mm CW Max. ; 6 mm Max Depth ; Left Hand ; Steel

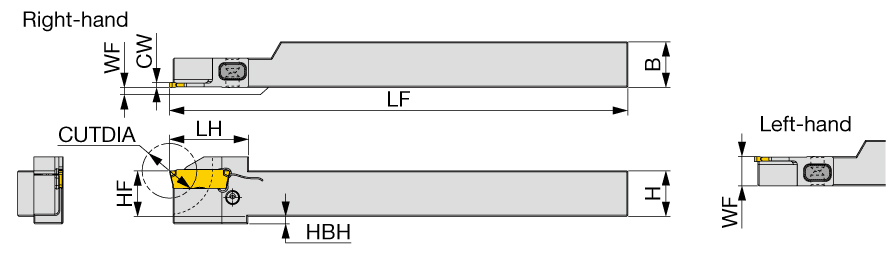

| Cutting Width Minimum (CWN) | 1.2 mm | Head Length (LH) | 17 mm |
| Cutting Width Maximum (CWX) | 1.2 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 6 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 7.7 mm | Measurement Type | Metric |
| Functional Length (LF) | 100 mm |
Product Features
| Family Description | External grooving and parting toolholder for Swiss lathes (for sub spindle) | Country of Origin | Japan |
