JTTEL1212F1.2D16

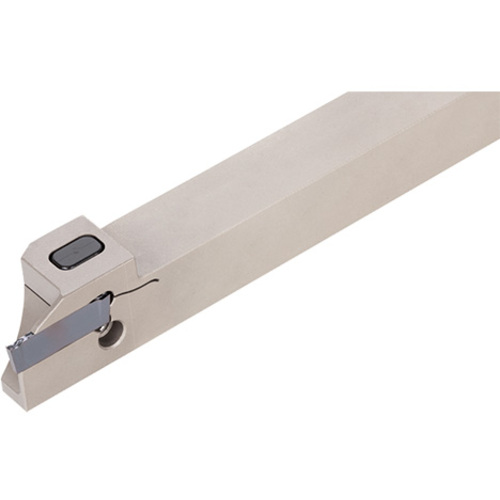

Grooving Toolholder ; 12 mm Shank Height ; 12 mm Shank Width ; 1.2 mm CW Min. ; 1.2 mm CW Max. ; 8 mm Max Depth ; Left Hand ; Steel

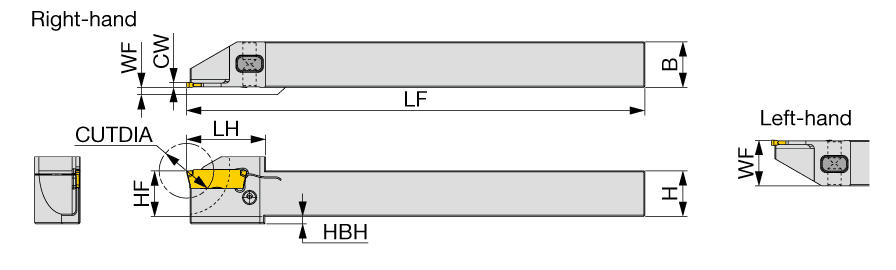

| Cutting Width Minimum (CWN) | 1.2 mm | Head Length (LH) | 19 mm |
| Cutting Width Maximum (CWX) | 1.2 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 8 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 12 mm | Measurement Type | Metric |
| Functional Length (LF) | 85 mm |
Product Features
| Family Description | External grooving and parting toolholder for swiss lathes | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
