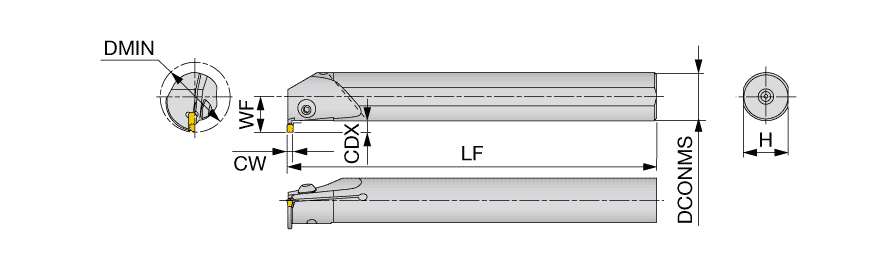

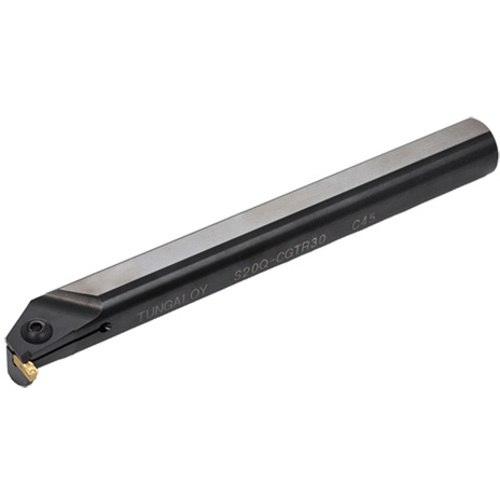

A12Q-CGTR30U
| Cutting Depth Maximum (CDX) | 0.138″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Shank Height (H) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Minimum Bore Diameter (DMIN) | 1″ | Application | | Internal grooving | |
| Functional Width (WF) | 0.571″ | Body Material | Steel |
| Functional Length (LF) | 7.09″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 0.835″ | Measurement Type | Inch |
Product Features
| Family Description | Toolholder for internal grooving & profiling | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.752
