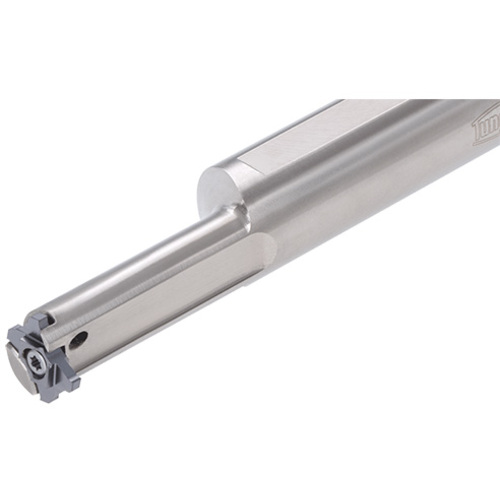

E12K-STCIR10-D150
Grooving Toolholder ; 11 mm Shank Height ; 12 mm Shank Dia. ; 0.5 mm CW Min. ; 3 mm CW Max. ; 2 mm Max Depth ; Right Hand ; Carbide

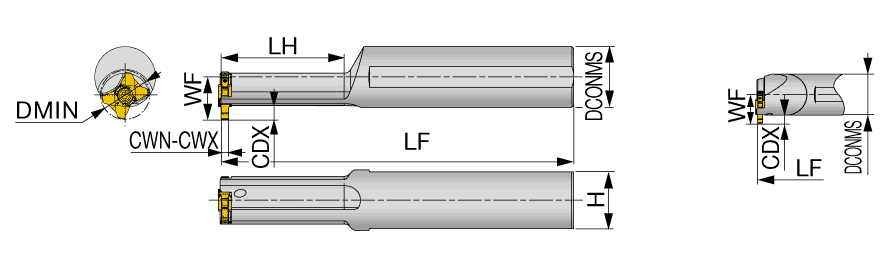

| Cutting Width Minimum (CWN) | 0.5 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Width Maximum (CWX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2 mm | Application | | Internal grooving | |
| Shank Height (H) | 11 mm | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 15 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 8.3 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | Internal grooving toolholder | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
