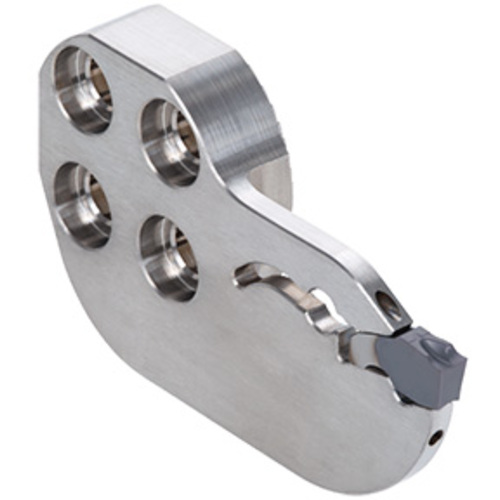

S25-QSIR3T26D550-H
Grooving Toolholder ; 0.984″ Shank Dia. ; 0.098″ CW Min. ; 0.137″ CW Max. ; 1.024″ Max Depth ; Right Hand ; Steel

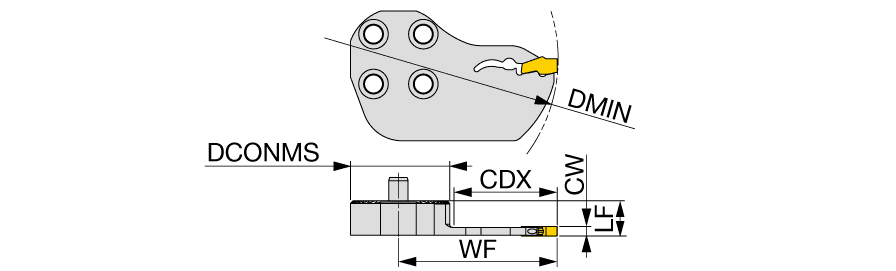

| Cutting Width Minimum (CWN) | 0.098″ | Connection Diameter Machine Side (DCONMS) | 0.984″ |
| Cutting Width Maximum (CWX) | 0.137″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 1.024″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 2.165″ | Body Material | Steel |
| Functional Width (WF) | 1.579″ | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 0.354″ | Measurement Type | Inch |
Product Features
| Family Description | Exchangeable boring head for internal deep grooving | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
