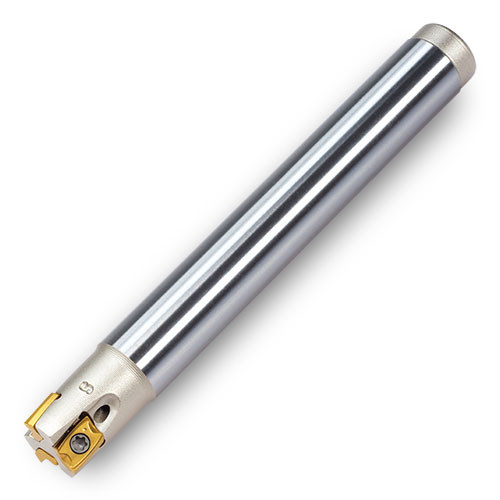

12J1A-05006S4R01
Indexable End Mill; 1/2″ Dia. × 0.19″ LOC × 1/2″ Shank Dia. × 3″ OAL × 0.56″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1/2″ | Usable Length (LU) | 0.56″ |
| Cutting Diameter (DC) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.19″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Protruding Length (LPR) | 1.22″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Insert corners: .008″ R & Hi-Feed V-Bottom pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.275
