QSEL12-2T26
Grooving Toolholder ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.059″ CW Min. ; 0.098″ CW Max. ; 1.024″ Max Depth ; Left Hand ; Steel

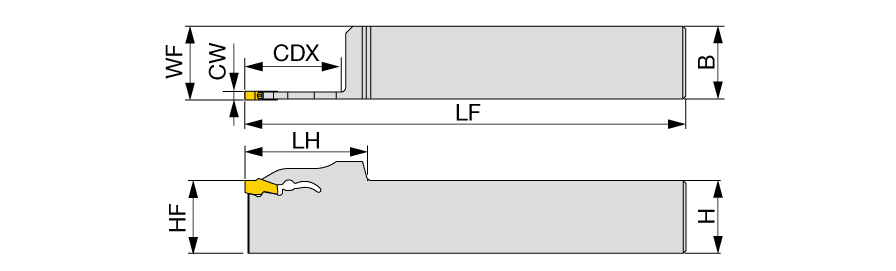

| Cutting Width Minimum (CWN) | 0.059″ | Head Length (LH) | 1.417″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 1.024″ | Application | | External grooving | Parting off | |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.756″ | Measurement Type | Inch |
| Functional Length (LF) | 5″ |
Product Features
| Family Description | External toolholder for grooving and parting | Country of Origin | Japan |
Shipping Info
Package Weight
0
